Blackmagic SmartScope Duo 4K 2 Technology Specs Overview Technology Specs Overview

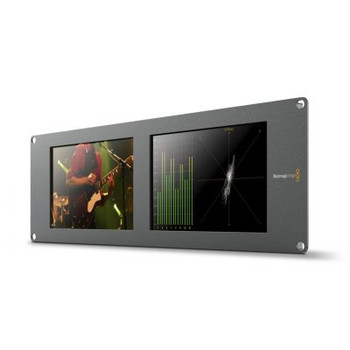

SmartScope Duo 4K looks like a SmartView Duo but adds independent waveform monitoring so you can select between waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase level displays. Each monitor is independent so can display any combination of scope or picture view!
Connections Technology Specs Overview Technology Specs Overview
SDI Video Input
Automatically switches between SD, HD and 6G-SDI. Reclocked loop through output.
SDI Video Output
1 x 10 bit loop through SD, HD and
6G-SDI switchable.
SDI Audio Input
16 channel embedded in SD and HD.
SDI Audio Output
16 channel embedded in SD and HD.
Multi Rate Support
Standard definition SDI, high definition SDI and 6G-SDI.
Tally
9-pin D connector
Standards Technology Specs Overview Technology Specs Overview
SD Format Support
625/25 PAL and 525/29.97 NTSC.
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98,1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p50, 1080p59.94, 1080p60
2K Format Support
2048x1080p/23.98, 2048x1080p/24, 2048x1080p/25, 2048x1080PsF/23.98, 2048x1080PsF/24, 2048x1080PsF/25, 2048x1556PsF/23.98, 2048x1556PsF/24, 2048x1556PsF/25
4K Format Support
3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M.
Audio Sampling
Television sample rate of 48KHz
Video Sampling
4:2:2 and 4:4:4
Color Precision
8-bit
Color Space
YUV and RGB
Computer Interface
USB 2.0 for software updates and Ethernet for configuration
Colorspace Conversion
Hardware based real time.
Scopes Technology Specs Overview Technology Specs Overview
Luminance Waveform, Vectorscope, RGB Parade, YUV Parade, Histogram, Audio phase and level.
Software Technology Specs Overview Technology Specs Overview
Software Included
Configuration utility for MAC and Windows.
Internal Software Upgrade
Via included firmware updater software.
Physical Installation
3RU
